ASP.Net Web API Basic Authentication Demo Application + Client Tester CRUD (Get, Post, Put, Delete) Windows Form Application

About

This project presents a Visual Studio solution including a simple demo ASP.Net Web API Basic Authentication Service Application and a “Tester” Client (Windows Form Application) that allows the user to test the Web API with CRUD operations (GET, POST, PUT, DELETE) that service design requires authentication (except the Get). In addition to demonstrating standard CRUD capabilities, the Web API service implements a .Net Memory Cache (MemoryCache) and custom username and password validator. Passwords are stored securely using Password-Based Key Derivation Function PBKD cryptology. The client “tester” windows form application is not intended as a UX/UI demo but used to test and verify that the backend authentication service allows the user to register with a username and password and verify the Web API CRUD functions based on basic authentication scheme. Lastly, the project is shown in the demo section with a video and screen captures. Note: Every Web API Authentication service should use secure transport. For brevity, this demo project does not implement or discuss the complicated detail nature of SSL/TLS.

Architecture

The demo project consists of these simple component topics:

ASP.Net Web API Service (Hosted by IIS Express) Application Project “WebAPIService”

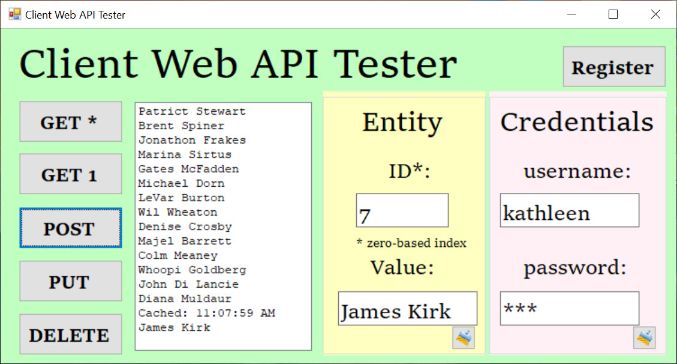

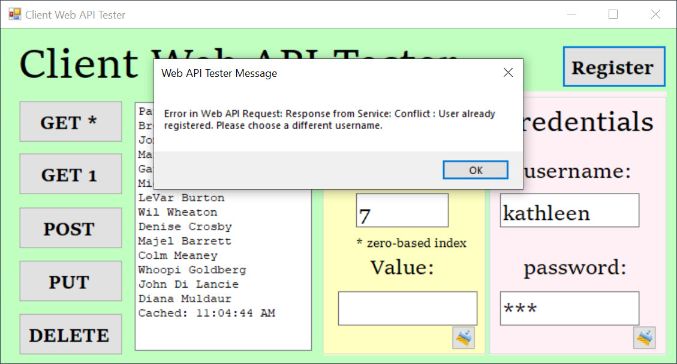

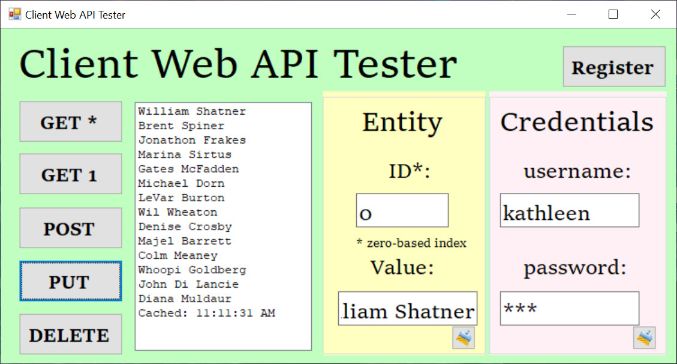

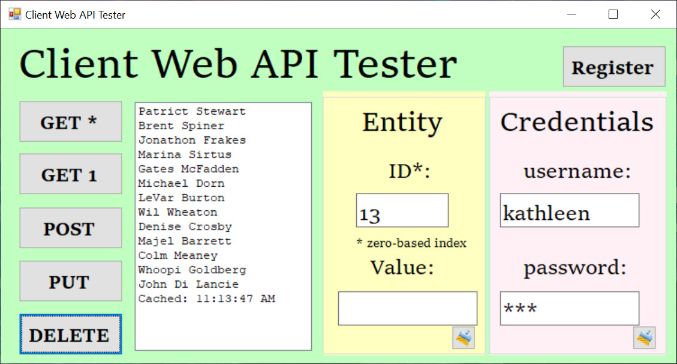

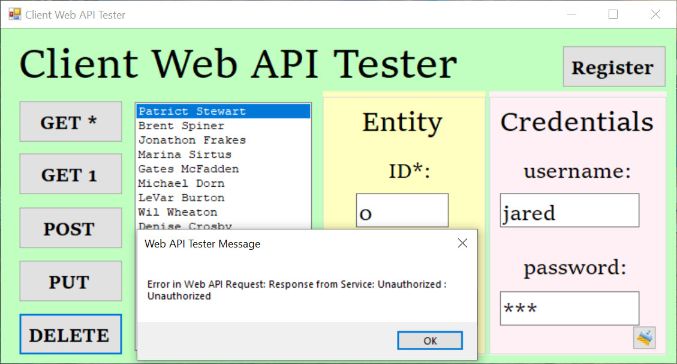

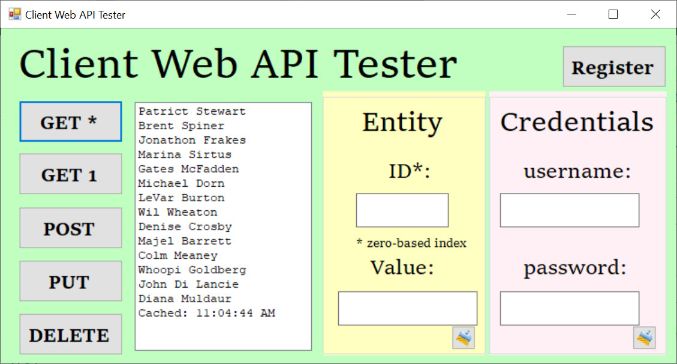

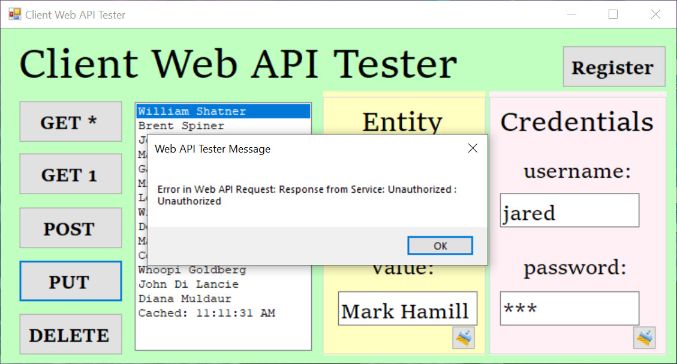

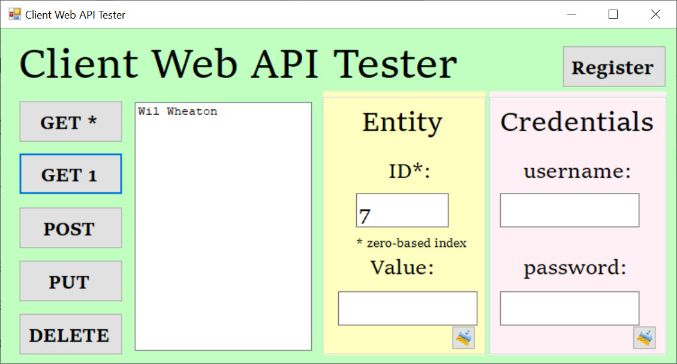

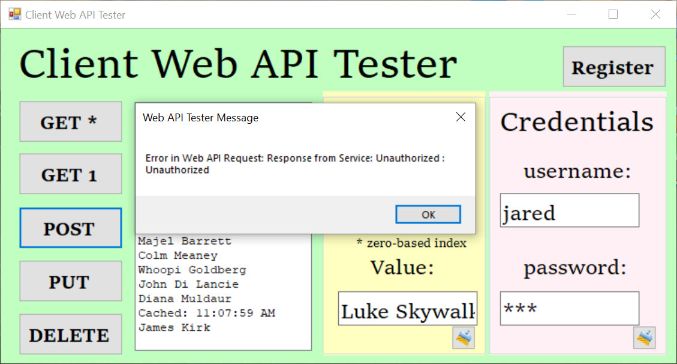

Client “Tester to Service” Windows Form Application Project “Client”

ASP.Net Web API Service Application

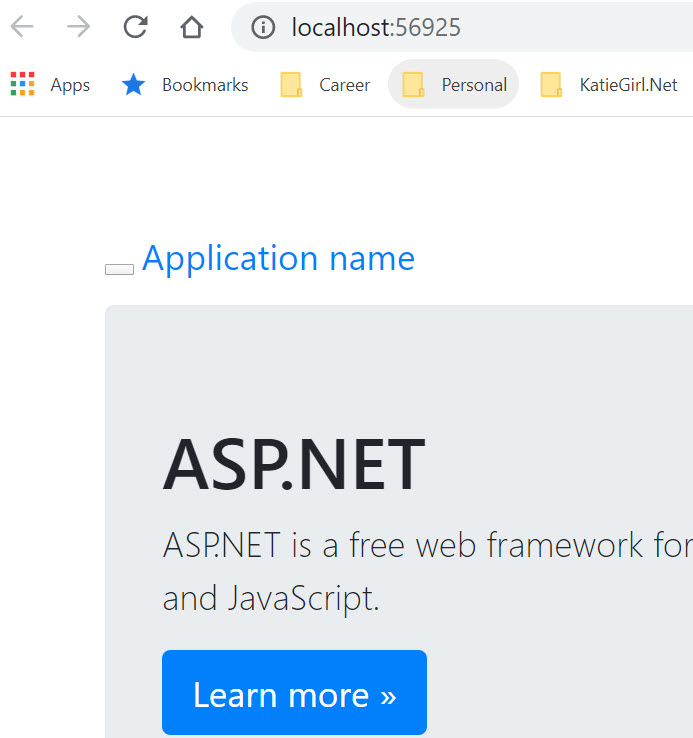

The ASP.Net Web Application template was used to create a simple Web API service and was hosted on my local development machine using IIS Express launched from Visual Studio. The API functions will be discussed after other topics. The project code is available on GitHub [here].

Topics

User Modeling
Memory Cache “MemoryCache” .Net Implementation
PBDK (Password-Based Key Derivation) Secure Password Cryptology
Custom Username and Password Validator
Authentication Handler

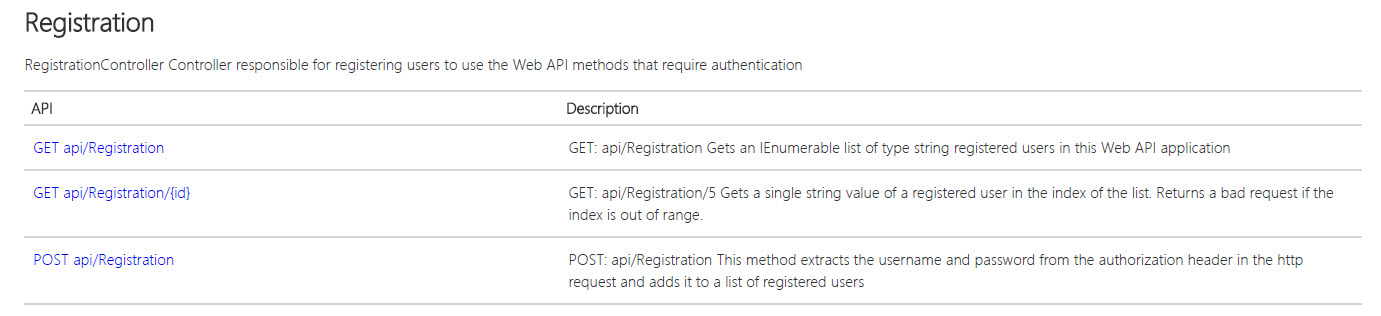

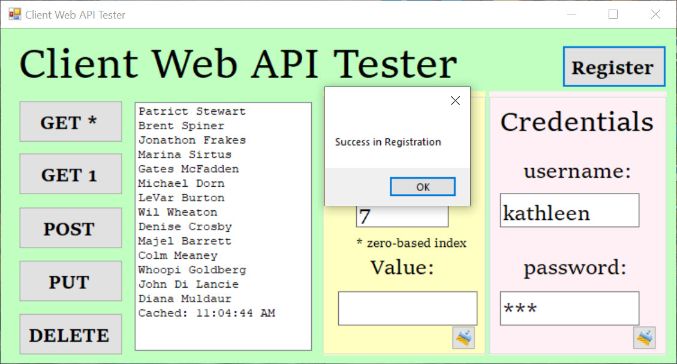

Registration Controller

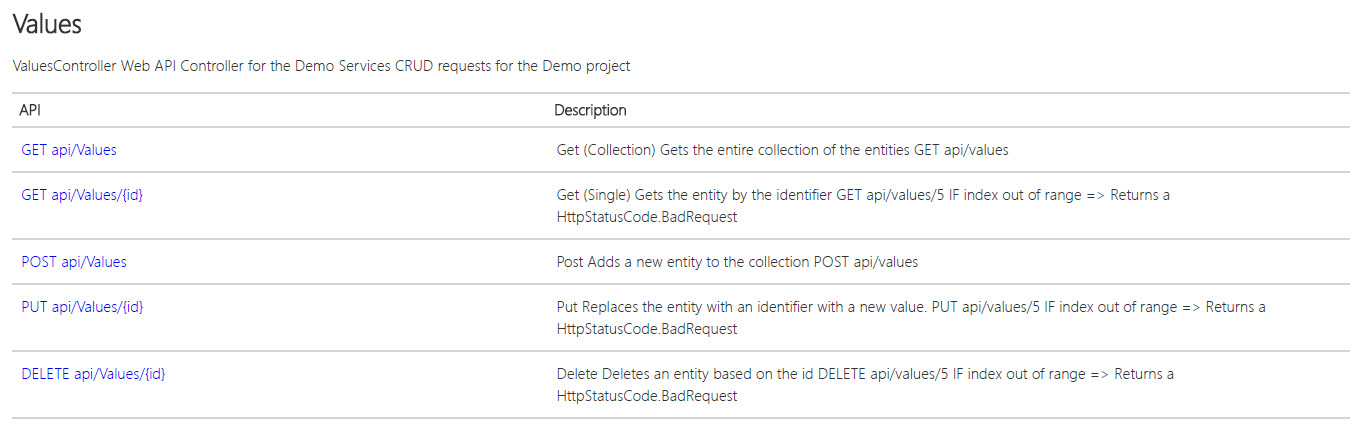

Values Controller

User Modeling

The application Models folder contains a class called User that represents a “registered” user. The User model is very similar to the User model discussed and used in a previous demo project article [here] except it does not store a callback reference. The User model contains properties for cryptology and also has a string override for the object to list the username property of the User object. Please reference the previous demo project article referenced above for detailed discussion regarding the User model. The class code is available on GitHub [here].

Memory Cache “MemoryCache” .Net Implementation

Since this is not a backend database demo, I implemented a .Net “MemoryCache” to simulate calls to the backend database store where user registration and application data information would be stored and accessed in production-ready applications. This is implemented in both the Registration and Values controller and also in the Authentication message handler.

I previously created a Web API Demo project specially to demonstrate an ASP.Net Web API Memory Cache implementation. The project article [here] is a great resource for understanding what a MemoryCache is and how-to implement this in a Web API with my experience tips and words of wisdom. In this project demo, I will not discuss in detail regarding my MemoryCache implementation. Please reference the previous demo for reference on how to implement a MemoryCache in ASP.Net Web API.

PBDK (Password-Based Key Derivation) Secure Password Cryptology

The ServiceCryptology class implements Password-Based Key Derivation Function PBKD for password management. I created a previous demo project and blog article [here] that discusses the nature and implementation of PBDK cryptology. I used the same cryptology design and code implementation in this project demo. Please reference the previous demo for reference on how to implement PBKD Cryptology. The class code is available on GitHub [here].

Custom Username and Password Validator

The UserNamePasswordAuthenticator class is a custom username and password validator. It only validates against previous registered users and if a user is not currently registered it does not validate the caller to the service as being authenticated. The class obtains the list of registered users from the MemoryCache to simulate an expensive backend database server call to query the username and password credential store. The validator then utilizes cryptology PBDK (see prior section) to check the input username and password against the credential store of RegisteredUsers in the MemoryCache. After a successful comparison using the PBDK, the validator passes the success state back to the Authentication Handler (see next section) so that it can then attach identity credentials. The class code is available on GitHub [here].

    public class UserNamePasswordAuthenticator
    {
        // Memory Cache
        ObjectCache cache = MemoryCache.Default;

        /// <summary>
        /// Validate
        /// </summary>
        /// <param name="username">(string) User credential "username"</param>
        /// <param name="password">(string) User credential "password"</param>
        public bool Validate(string username, string password)
        {
            // User
            User user;

            #region ValidateUserRegistration

            // First try to find a registered user from the Memory Cache
            // Cache for Registered Users for Web API Authentication
            if (cache.Contains("RegisteredUsers"))
            {
                // Get the List of Entities from the Cache
                List<User> RegisteredUsers = (List<User>)cache.Get("RegisteredUsers");

                user = RegisteredUsers.FirstOrDefault(x => x.UserName == username);

                // Allow the Service Registration to Handle Unregistered User
                if (user == null)
                {
                    // Do not validate non-existing users
                    return false;
                }

            } // end of if

            else
            {
                // Cache does not contain registered users... or not setup
                return false;
            }

            #endregion ValidateUserRegistration


            #region AuthenticateRegisteredUser

            // Convert Password to Compare to Database Password
            // Password-Based Key Derivation Function
            byte[] bytesPassword = Encoding.Unicode.GetBytes(password);
            // Note: Cryptology values may not be suitable for production level, this is only a demo
            byte[] passwordHash = ServiceCryptology.GenerateHash(bytesPassword, user.Salt, user.WorkFactor, 256);

            // Authenticate the Existing User Password
            if (user != null && System.Text.Encoding.Default.GetString(user.Password) == System.Text.Encoding.Default.GetString(passwordHash))
            {
                // Authenticated, no other action necessary
                return true;
            }
            else
            {
                Debug.WriteLine("Unknown Username or Incorrect Password");
                throw new SecurityTokenException("Unknown Username or Incorrect Password");
            }

            #endregion AuthenticateRegisteredUser

        } // end of method

    } // end of class

public class UserNamePasswordAuthenticator

{

// Memory Cache

ObjectCache cache = MemoryCache.Default;

/// <summary>

/// Validate

/// </summary>

/// <param name="username">(string) User credential "username"</param>

/// <param name="password">(string) User credential "password"</param>

public bool Validate(string username, string password)

{

// User

User user;

#region ValidateUserRegistration

// First try to find a registered user from the Memory Cache

// Cache for Registered Users for Web API Authentication

if (cache.Contains("RegisteredUsers"))

{

// Get the List of Entities from the Cache

List<User> RegisteredUsers = (List<User>)cache.Get("RegisteredUsers");

user = RegisteredUsers.FirstOrDefault(x => x.UserName == username);

// Allow the Service Registration to Handle Unregistered User

if (user == null)

{

// Do not validate non-existing users

return false;

}

} // end of if

else

{

// Cache does not contain registered users... or not setup

return false;

}

#endregion ValidateUserRegistration

#region AuthenticateRegisteredUser

// Convert Password to Compare to Database Password

// Password-Based Key Derivation Function

byte[] bytesPassword = Encoding.Unicode.GetBytes(password);

// Note: Cryptology values may not be suitable for production level, this is only a demo

byte[] passwordHash = ServiceCryptology.GenerateHash(bytesPassword, user.Salt, user.WorkFactor, 256);

// Authenticate the Existing User Password

if (user != null && System.Text.Encoding.Default.GetString(user.Password) == System.Text.Encoding.Default.GetString(passwordHash))

{

// Authenticated, no other action necessary

return true;

}

else

{

Debug.WriteLine("Unknown Username or Incorrect Password");

throw new SecurityTokenException("Unknown Username or Incorrect Password");

}

#endregion AuthenticateRegisteredUser

} // end of method

} // end of class

Authentication Handler

The Authentication Handler is a message handler that processes the user authentication to the Web API application. The class code is available on GitHub [here]. The implementation details are detailed below.

Configuration

This custom message handler should be added first to the processing pipeline so that the user is authenticated early on. I added this handler to the WebApiConfig file registration under App_Start. The configuration file reference is available on GitHub [here].

        public static void Register(HttpConfiguration config)
        {
            // Web API configuration and services

            // Web API routes
            config.MapHttpAttributeRoutes();

            config.Routes.MapHttpRoute(
                name: "DefaultApi",
                routeTemplate: "api/{controller}/{id}",
                //routeTemplate: "api/{controller}/{action}/{id}",
                defaults: new { id = RouteParameter.Optional }
            );

            // Adds a custom message handler for authentication
            // Highest priority and first to process in the pipeline
            // Authentication should be done as earliest as possible in the pipeline
            config.MessageHandlers.Add(new AuthenticationHandler());

        } // end of method

public static void Register(HttpConfiguration config)

{

// Web API configuration and services

// Web API routes

config.MapHttpAttributeRoutes();

config.Routes.MapHttpRoute(

name: "DefaultApi",

routeTemplate: "api/{controller}/{id}",

//routeTemplate: "api/{controller}/{action}/{id}",

defaults: new { id = RouteParameter.Optional }

);

// Adds a custom message handler for authentication

// Highest priority and first to process in the pipeline

// Authentication should be done as earliest as possible in the pipeline

config.MessageHandlers.Add(new AuthenticationHandler());

} // end of method

SendAsync Method

This is TPL (task parallel library) message handler for authentication. Method inputs include the incoming http request message object from the client and a cancellation token that allows cancellation. This method is called as the application “chains” through its event handlers and the pipeline. The cancellation token allows monitoring and potential cancellation of the request although this particular demo does not monitor and process cancellation requests. The SendAsync method main function is to process the incoming http request message object, then call the base message handler to continue the processing pipeline. Finally, the method processes the final outgoing http response message.

		protected async override Task<HttpResponseMessage> SendAsync(HttpRequestMessage request,
                    CancellationToken cancellationToken)
        {
            try
            {
                // Perform custom processing of the incoming http request
                ProcessRequestMessage(request);

                // Re-enter Processing Pipeline
                HttpResponseMessage response = await base.SendAsync(request, cancellationToken);

                // Exited the Processing Pipeline...
                // Perform custom response processing
                ProcessResponseMessage(response);

                // Return the response
                return response;
            } // end of try

            // Assumes an exception is due to user not being authorized
            catch (Exception)
            {
                // create a new http response with the status code of unauthorized
                HttpResponseMessage response = request.CreateResponse(HttpStatusCode.Unauthorized);

                // Add the authorization scheme to the response header
                response.Headers.WwwAuthenticate.Add(new AuthenticationHeaderValue(SCHEME));

                // return the response
                return response;

            } // end of catch
        } // end of method

protected async override Task<HttpResponseMessage> SendAsync(HttpRequestMessage request,

CancellationToken cancellationToken)

{

try

{

// Perform custom processing of the incoming http request

ProcessRequestMessage(request);

// Re-enter Processing Pipeline

HttpResponseMessage response = await base.SendAsync(request, cancellationToken);

// Exited the Processing Pipeline...

// Perform custom response processing

ProcessResponseMessage(response);

// Return the response

return response;

} // end of try

// Assumes an exception is due to user not being authorized

catch (Exception)

{

// create a new http response with the status code of unauthorized

HttpResponseMessage response = request.CreateResponse(HttpStatusCode.Unauthorized);

// Add the authorization scheme to the response header

response.Headers.WwwAuthenticate.Add(new AuthenticationHeaderValue(SCHEME));

// return the response

return response;

} // end of catch

} // end of method

ProcessRequestMessage Method

This method takes the input “HttpRequestMessage” incoming request object and processes the http request authorization headers. This method extracts the username and password, then validates them against a credential store of existing username and password using a custom username and password validator. If they are valid, it builds and sets a ClaimsPrincipal of identity. This process allows the application to provide credentials early on in the pipeline processing before any of the Web API controller methods are called. The Web API application is now able to extract from the thread, the context and authentication principal identity information. This allows the service application to know which groups the current user belongs to and their permissions. The Web API controller can now filter out authenticated users at the method level with simple attribute such as using the [Authorize] attribute.

        private void ProcessRequestMessage(HttpRequestMessage request)
        {
            // Extract the headers from the request
            HttpRequestHeaders headers = request.Headers;

            // Check to see if the authorization header is not null AND
            // Check to see if the authorization scheme matches our design (ex: Basic)
            if (headers.Authorization != null && SCHEME.Equals(headers.Authorization.Scheme))
            {
                // Try to parse the encoded username and password
                // Assume user id and password Base64 encoded as "userid:password"

                // Assume the encoding scheme
                Encoding encoding = Encoding.GetEncoding("iso-8859-1");

                // Takes the information out of the authorization header
                // Convert from a Base64 Encoded string to a regular string
                string credentials = encoding.GetString(Convert.FromBase64String(headers.Authorization.Parameter));

                // Split the information
                string[] parts = credentials.Split(':');

                // obtain the username
                string userID = parts[0].Trim();

                // obtain the password
                string password = parts[1].Trim();

                try
                {
                    // Create a validator object
                    UserNamePasswordAuthenticator validator = new UserNamePasswordAuthenticator();

                    // Validate the Client username and password
                    if (!validator.Validate(userID, password))
                    {
                        // not registered and not authenticated
                        return;
                    }

                    // Client is Valid Registered User
                    // Create a new claim based on the username and password
                    List<Claim> claims = new List<Claim> {
                        new Claim(ClaimTypes.Name, userID),
                        new Claim(ClaimTypes.AuthenticationMethod, AuthenticationMethods.Password)
                    };

                    // Create a Claims principal based on the username and password
                    ClaimsPrincipal principal = new ClaimsPrincipal(new[] { new ClaimsIdentity(claims, SCHEME) });

                    // Set the current thread principal to this newly created one
                    Thread.CurrentPrincipal = principal;

                    // Set the HttpContext to the principal object
                    if (HttpContext.Current != null)
                        HttpContext.Current.User = principal;

                }
                catch (Exception)
                {
                    throw;
                }


            } // end of if
        } // end of method

private void ProcessRequestMessage(HttpRequestMessage request)

{

// Extract the headers from the request

HttpRequestHeaders headers = request.Headers;

// Check to see if the authorization header is not null AND

// Check to see if the authorization scheme matches our design (ex: Basic)

if (headers.Authorization != null && SCHEME.Equals(headers.Authorization.Scheme))

{

// Try to parse the encoded username and password

// Assume user id and password Base64 encoded as "userid:password"

// Assume the encoding scheme

Encoding encoding = Encoding.GetEncoding("iso-8859-1");

// Takes the information out of the authorization header

// Convert from a Base64 Encoded string to a regular string

string credentials = encoding.GetString(Convert.FromBase64String(headers.Authorization.Parameter));

// Split the information

string[] parts = credentials.Split(':');

// obtain the username

string userID = parts[0].Trim();

// obtain the password

string password = parts[1].Trim();

try

{

// Create a validator object

UserNamePasswordAuthenticator validator = new UserNamePasswordAuthenticator();

// Validate the Client username and password

if (!validator.Validate(userID, password))

{

// not registered and not authenticated

return;

}

// Client is Valid Registered User

// Create a new claim based on the username and password

List<Claim> claims = new List<Claim> {

new Claim(ClaimTypes.Name, userID),

new Claim(ClaimTypes.AuthenticationMethod, AuthenticationMethods.Password)

};

// Create a Claims principal based on the username and password

ClaimsPrincipal principal = new ClaimsPrincipal(new[] { new ClaimsIdentity(claims, SCHEME) });

// Set the current thread principal to this newly created one

Thread.CurrentPrincipal = principal;

// Set the HttpContext to the principal object

if (HttpContext.Current != null)

HttpContext.Current.User = principal;

}

catch (Exception)

{

throw;

}

} // end of if

} // end of method

ProcessResponseMessage Method

This method takes the input and final outgoing http response object to the client. The method checks to see if the response status code is unauthorized and adds further information to the response to indicate the specific authentication scheme that is required. If the response is unauthorized, then the process pipeline falls here eventually.

		private void ProcessResponseMessage(HttpResponseMessage response)
        {
            // If user is unauthorized, reply to client indicating what
            // authentication scheme is required to proceed
            if (response.StatusCode == HttpStatusCode.Unauthorized)
            {
                response.Headers.WwwAuthenticate.Add(
                    new AuthenticationHeaderValue(SCHEME));
            }
        } // end of method

private void ProcessResponseMessage(HttpResponseMessage response)

{

// If user is unauthorized, reply to client indicating what

// authentication scheme is required to proceed

if (response.StatusCode == HttpStatusCode.Unauthorized)

{

response.Headers.WwwAuthenticate.Add(

new AuthenticationHeaderValue(SCHEME));

}

} // end of method

Registration Controller

This Registration controller is a generic default Web API controller implementation responsible for registering users to the service application. I did modify and customize the GET and POST methods to simulate CRUD operations that could be done on a backend database. The Memory Cache simulates “conserving” expensive resource calls to the backend database by keeping the contents in memory for a specified duration. The Registration API is described in the image above. Users must first register to the application service before they are authorized to do certain requests on the regular service data (POST, PUT, and DELETE). The code is available on GitHub [here].

Constructor

The Registration constructor gets called each time the client does a Web API request. A controller instance is created after the construction for the Web API actions. The constructor provides an opportunity to check the existence of the key-value pair in the MemoryCache and if it does not exist, call a backend database to repopulate it. In this demo, I am simulating the database call by reinitializing a default List of User objects called RegisteredUsers with two test users and also placed it in the MemoryCache with a longer expiration policy.

Get (Collection)

The Get (Collection) retrieves the RegisteredUsers key-value entry from the cache and then returns an IEnumerable collection of User objects (as strings) to the caller. Note: The method requires no prior user registration or authentication to access the service.

Get (Entity Id)

The Get (Single Entity) first retrieves the RegisteredUsers key-value entry from the cache as an IEnumerable collection, then returns the User object (as a string) at that index location in the collection. It first checks to see if the caller’s index is in range before returning the entity. If the specified index is out of range, it will return a BadRequest response code to the caller. Note: The method requires no prior user registration or authentication to access the service.

Post

The method first retrieves the cache from a key RegisteredUsers into a List object in the method. Because the MemoryCache object reference is set to the local object, all actions done on the local List<User> object takes effect in the key-value entry in the cache. The method then extracts the authorization header from the current http request object to obtain the username and password. If the username does not already exist in the current List<User> of RegisteredUsers, the Post method creates a new User object and simply adds this object as new entry to the List of RegisteredUsers. In case of pre-existing registered users and other issues, the http response is formed with appropriate status code and reason. Note: The method requires no prior user registration or authentication to access the service.

Values Controller

This Values controller is the generic default Web API controller implementation and I did not rename or do any custom routing other than use the default routing. This is a basic demo with focus on showing the Memory Cache and client implementations. However, I did modify and customize the GET, POST, PUT, and DELETE methods to simulate CRUD operations that could be done on a backend database. The Memory Cache simulates “conserving” expensive resource calls to the backend database by keeping the contents in memory for a specified duration. The Values API is described in the image above. The code is available on GitHub [here].

Constructor

The Values constructor gets called each time the client does a Web API request. A controller instance is created after the construction for the Web API actions. The constructor provides an opportunity to check the existence of the key-value pair in the MemoryCache and if it does not exist, call a backend database to repopulate it. In this demo, I am simulating the database call by reinitializing a default List of string objects called “People” and then placing the key-value item in the MemoryCache object. I also initialized a default List of User objects called RegisteredUsers with two test users and also placed it in the MemoryCache with a longer expiration policy.

Get (Collection)

The Get (Collection) retrieves the key-value entry People from the cache and then returns an IEnumerable collection to the caller. Note: The method requires no prior user registration or authentication to access the service.

Get (Entity Id)

The Get (Single Entity) first retrieves the key-value entry People from the cache as an IEnumerable collection, then returns the object value at that index location in the collection. It first checks to see if the caller’s index is in range before returning the entity. If the specified index is out of range, it will return a BadRequest response code to the caller. Note: The method requires no prior user registration or authentication to access the service.

Post

The method first retrieves the cache value (List object) from a key People into a List object in the method. Because the object reference is set to the local object, all actions done on the local List<string> object takes effect in the key-value entry in the cache. Post simply adds a new entry to the List<string> object. The [Authorize] attribute was added to require a user be pre-registered (see Registration Controller API) and authenticated (see Authentication Handler) before having the authority to perform this function.

Put

The method first retrieves the cache value (List object) from a key People into a List object in the method. Because the object reference is set to the local object, all actions done on the local List<string> object takes effect in the key-value entry in the cache. Put simply replaces an entry to the List<string> object at the specified index. However, the method first checks to determine if the index is in range. If out of range, it will return a BadRequest response code to the caller. The [Authorize] attribute was added to require a user be pre-registered (see Registration Controller API) and authenticated (see Authentication Handler) before having the authority to perform this function.

Delete

The method first retrieves the cache value (List object) from a key People into a List object in the method. Because the object reference is set to the local object, all actions done on the local List<string> object takes effect in the key-value entry in the cache. Delete simply deletes an entry in the List<string> object at the specified index. However, the method first checks to determine if the index is in range. If out of range, it will return a BadRequest response code to the caller. The [Authorize] attribute was added to require a user be pre-registered (see Registration Controller API) and authenticated (see Authentication Handler) before having the authority to perform this function.

Client “Tester to Web API Service” Windows Form Application

The client “tester to service” is a simple windows form application project (Client) in the same solution that connects to the Web API by constructing a .Net HttpClient object and setting the path to the Web API service. The client program has a useful GUI to aid the user to test the GET, POST, PUT, and DELETE calls to the Web API with parameters specified in the data entry boxes. The client also allows the user to enter credentials and register on the service. After successful registration, the user will be able to successfully complete the POST, PUT, and DELETE requests only if they include the same credentials at the time of their request. The project code is available on GitHub [here].

Features

The client application was meant to only quickly demonstrate consumption of the Web API service, so this client has limited scope of features. Some of the client application features are:

Simple Design

The user interface is simplified to do basic demo, testing, verification, and showing results in the GUI. After executing a Get(*) or any request other than Get(1), the user can select an item in the list and the index data entry box will populate with the correct entity index. The user can also manually enter an index, but the list value will not be selected. The user can select an item from the list, let the index box auto-update, and then perform PUT, DELETE, or GET(1) Web API requests. Note: The GET(*) is called after every PUT, POST, and DELETE request to update and refresh the contents of the local list shown in the GUI. The user can also easily POST a new entity by entering a string value into the data entry box and clicking on POST. The user can also select an existing item in the list, the index will show, and then type an entry into the Value text box to PUT or replace an entry. Likewise, the user can select an entry in the list box, the index selection will update, and then DELETE the entity.

Results in the GUI

After each Web API call (except Get (1)), the GUI List Box is populated with the current contents of the controller’s cache key-value entry. This would simulate a database query on the service and seeing the results of the query in the client GUI. For the Get(1) request, the List Box is only populated with the entity at the index that was requested by the user. Note: The GET(*) is called after every PUT, POST, DELETE request to update and refresh the contents of the local list shown in the GUI.

Feedback of Bad Web API Responses

If the service returns any response other than “successful” the problem is caught in the client and alerts the user with a Message Box dialog with the code and error.

MemoryCache Verification

The service places a string object indicating the current DateTime that the MemoryCache key-value entry was created. This information is returned to the client in the same List<string> object with the remainder of the “People” items. This allows the user to verify that the MemoryCache entry is expiring on schedule and refreshing its contents with the default values per the design. The user can verify the MemoryCache is working in the Client by selecting the Get(*) button after the policy expiration interval to verify the DateTime is changed.

User Registration

The user credentials are parsed from the data entry text boxes and placed into the authorization header of the client default http request header. Upon clicking the button, the client sends a request to the Registration service on the Web API with the credentials embedded in its request.

Program Code

The code behind file is for the client tester and manages the application in one file. The code is available on GitHub [here].

Fields

Private fields allow the client to work with the following:

Http Client for Web Requests
Paths to Web API Services (Registration and Values)

Methods

Events

Multiple button click events handle the user requests including registration. Some events may first validate user text input from the GUI, then call a helper method to further assemble the HttpClient object for the GET, POST, PUT, or DELETE requests.

Helper Methods for Web API

These methods run after a button click request, work to further setup the HttpClient object, communicate with the Web API service, and process the results asynchronously. If there is a response other than successful, it throws an exception that is handled further upstream with a user dialog alerting the user of the Web API issue during testing.

Demo

A video demonstration of the project is available on YouTube here:

Screen captures are shown below for various user activities:

After all projects are loaded from Visual Studio
After Get(*)
After Get(1) with the index specified
Registration – Successful
Registration – Invalid
After Post with the Value specified, Authorized (Authenticated) User
Post with the Value specified, Unauthorized (Authenticated) User
After Put with the Index and Value specified, Authorized (Authenticated) User
Put with the Index and Value specified, Unauthorized (Authenticated) User
After DELETE with the Index specified, Authorized (Authenticated) User
After DELETE with the Index specified, Unauthorized (Authenticated) User

Code

The entire project code repository is available on GitHub [here].

About

Architecture

ASP.Net Web API Service Application

User Modeling

Memory Cache “MemoryCache” .Net Implementation

PBDK (Password-Based Key Derivation) Secure Password Cryptology

Custom Username and Password Validator

Authentication Handler

Configuration

SendAsync Method

ProcessRequestMessage Method

ProcessResponseMessage Method

Registration Controller

Constructor

Get (Collection)

Get (Entity Id)

Post

Values Controller

Constructor

Get (Collection)

Get (Entity Id)

Post

Put

Delete

Client “Tester to Web API Service” Windows Form Application

Features

Simple Design

Results in the GUI

Feedback of Bad Web API Responses

MemoryCache Verification

User Registration

Program Code

Fields

Methods

Events

Helper Methods for Web API

Demo

Code

Share this:
